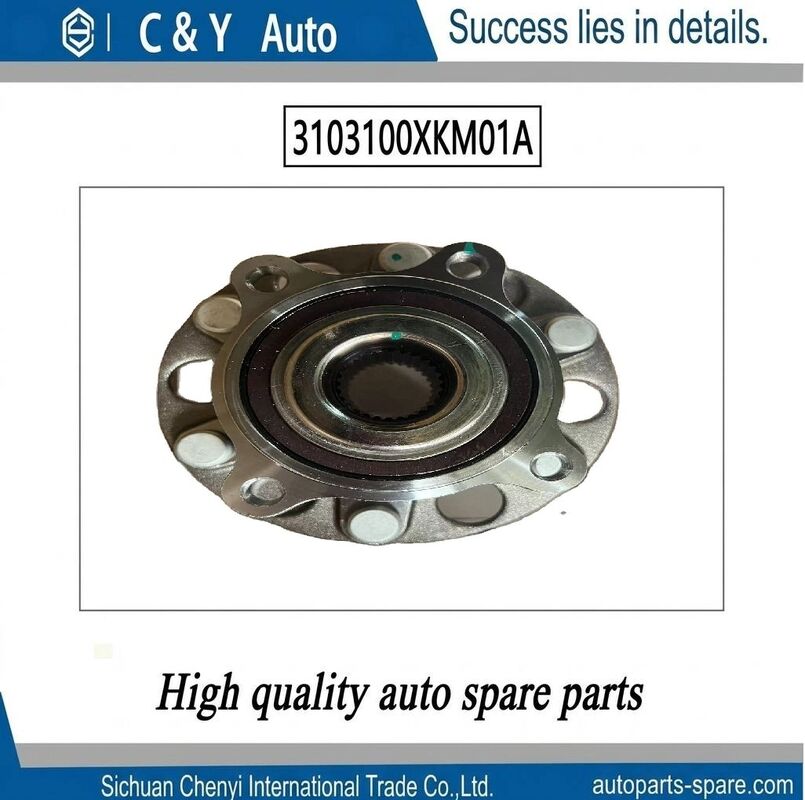

Front Wheel Hub Bearing Assembly OEM 3103100XKM01A For Tank 300 GWM Double Row ABS Integrated

This integrated front wheel hub bearing unit adopts third-gen double row angular contact ball structure, fully manufactured per original vehicle drawing standards and compatible with all GWM Tank 300 off-road SUVs. It integrates hub flange, bearing core, ABS signal magnetic ring and multi-lip sealing system as one complete unit, bearing both radial gravity and lateral axial force during steering, cornering and bumpy cross-country driving.
Rolling elements and inner/outer rings are made of full-hardened GCr15 bearing steel, reaching P5 precision grade with radial runout controlled under 0.012mm. Rated dynamic load 48kN, static load 62kN, supporting heavy off-road load; pre-filled high-temperature lithium complex grease, stable working from -40℃ to 150℃ without grease thinning. Dual-layer multi-lip rubber sealing forms IP67 waterproof & dustproof barrier to block mud, sand and rain splash. The built-in ABS magnetic ring matches original sensor signal frequency completely, no signal loss during high-speed driving.
All mounting stud spacing, spline tooth parameters and flange hole positions strictly follow OEM dimensions for bolt-on installation without secondary pressing or modification. Every hub bearing passes rotary noise inspection, salt spray corrosion test, long-cycle fatigue bench and ABS signal calibration before shipment, ideal replacement for units with humming noise, wheel shake, ABS failure or seal leakage.

All trim levels of GWM Tank 300 off-road SUV

1. 1:1 OEM integrated molding, perfectly matched with steering knuckle and brake assembly, no assembly offset or wheel deviation
2. P5 ultra-precision machining reduces rotation clearance, eliminate steering wheel vibration at high speed and abnormal hum noise
3. Dual-row bearing structure bears combined radial & axial load, strong rigidity against off-road bump impact and heavy load deformation
4. IP67 multi-layer sealing prevents silt and moisture invasion, extend service life without frequent grease refilling
5. Built-in standard ABS magnetic ring delivers stable speed signal, avoid fault alarm and braking system failure risks
